2010 Mitsubishi Outlander images in High Resolution

Mitsubishi Outlander is an award winning four door, five or seven passenger, compact SUV built on a unibody chassis featuring RISE technology. The restyled 2010 Outlander comes in three trim levels and is available with either 2WD (front wheel drive), driver selected 4WD or with full time Super All-Wheel Control (S AWC). Available engines include either a 2.4 litre 4 cylinder, 168 hp engine or a 3.0 litre, 230 hp V6 engine, depending on the model.

Available Models

Outlander ES 2WD, front wheel drive model; ES 4WD, four wheel drive model (driver can select 4WD at any time by means of a centre console-mounted control knob); Outlander LS also with driver selectable 4WD and Outlander XLS with Super All Wheel Control (S AWC) and Active Front Differential (AFD) a Mitsubishi proprietary full time all wheel drive system.

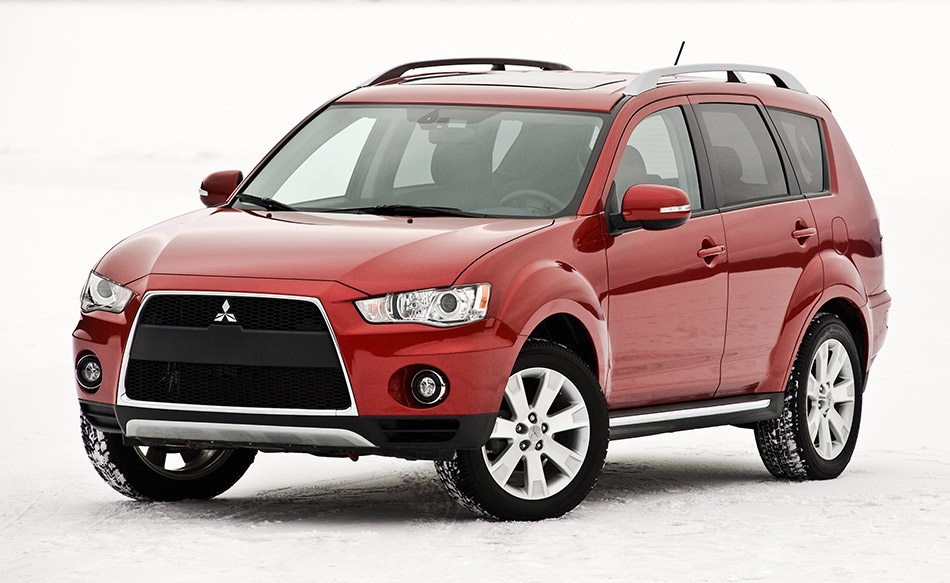

2010 Mitsubishi Outlander Front Angle

Optional Extra Cost Packages

Sun & Sound Package – Std on XLS, Pkg on ES 4WD and LS

Sirius® satellite radio with six months complimentary service
710-Watt (max) Rockford-Fosgate Punch® premium sound system with 9 speakers including a 10 inch dual voice coil subwoofer, custom 20 litre sub enclosure, digital signal processor, speed compensated volume and equalization
Power glass sunroof with sunshade
New, Total Security alarm system with motion sensor (Std on LS/XLS)

Navigation & Entertainment – Pkg on XLS

40 GB HDD Navigation which includes a10 GB Digital Music server
Real Time Traffic (RDS)
Rear seat DVD with 9" LCD monitor
Remote control
1 x Wireless headphone
115V Accessory outlet
Video auxiliary input jack
Rearview camera

Driveline Engineering

ES 2WD – Fuel efficient front wheel drive system
ES 4WD/LS – On demand four wheel drive. All 4WD Outlanders use the Mitsubishi electronic All-Wheel Control system (AWC) combined with Active Stability and Traction Control to ensure improved grip and safety in all road and weather conditions. The 4WD system is driver selectable at any engine speed.
XLS – Super All Wheel Control with Active Front Differential. S AWC is an advanced full time all wheel drive system that varies drive torque from left to right and from front to rear in real time depending on driver inputs and road conditions. S AWC provides superior traction and driving control at all times.
ES – 2.4 litre, DOHC, MIVEC, 16 valve, 4-cylinder engine producing 168 hp @ 6000 rpm and 167 lb-ft of torque @ 4100 rpm coupled to Mitsubishi's Continuously Variable Transmission (CVT).
LS/XLS – 3.0 litre, SOHC, MIVEC, 24 valve, V6 producing 230 hp @ 6250 rpm and 215 lb-ft of torque @ 3750 rpm mated to a six-speed Sportronic® automatic transmission
XLS – Magnesium alloy steering wheel paddle shifters
Engine redline (2.4 & 3.0) 6500 rpm, recommended fuel regular unleaded
ES 4WD/LS/XLS – Hill Start Assist (HSA)

Active Safety Systems: Chassis, Suspension & Brakes

Unibody construction on RISE chassis
Power assisted front ventilated, solid rear disc brakes
Anti-lock brakes (ABS) with Electronic Brakeforce Distribution (EBD)
Front suspension: MacPherson struts with strut tower bar
Rear suspension: advanced multilink with coil springs
Front and rear stabilizer bars
Power assisted rack and pinion steering, 3.16 turns lock to lock
Towing capacity ES: 680 kg /1500 lbs; LS/XLS: 1588 kg / 3500 lbs

Exterior Features

Redesigned front fascia, hood, fenders and headlamps
Redesigned front mesh grille (XLS has chrome surround)
Redesigned rear quarter panel fascia
Redesigned, heated, colour keyed, folding, power outer door mirrors
LS/XLS – LED turn signals in outer door mirrors
XLS – High Intensity Discharge (HID) headlamps
Short pole roof antenna
Intelligent washer
Colour keyed outer door handles
Side marker lamps (ES)
LS/XLS – V6 badge on rear liftgate
XLS – rain sensing front wipers
Intermittent rear window wiper washer
Flap-folding tail gate function
Tinted glass; rear privacy glass
ES/LS – 16" alloy wheels, 215/70R16 all season tires
XLS – Redesigned seven spoke 18" alloy wheels with 225/55R18 all season tires
LS/XLS – Redesigned fog lights with chrome surround
XLS - Colour keyed front bumper with silver skid plate extension; silver painted roof rails

Interior Features: Comfort and Convenience

Illuminated vanity mirrors
ES/LS – New high grade interior seat fabric
XLS – New, full colour Multi Information display, high contrast instrument cluster
Manual air-conditioning
XLS – automatic climate control
Leather wrapped steering wheel with silver accent
Leather wrapped shift knob
Heated front seats
Fully flat seating function, 1st and 2nd row
Driver's seat height adjustment
60:40 rear split-fold/tumble seats
LS/XLS – Underfloor-stowable compact 3rd row seat
XLS – power driver's seat; leather seating surfaces (1st and 2nd row seats)
Rear cargo cover
Rear heater floor ducts
Power central door and tailgate locks
Power windows with auto up/down drivers switch
Rearview camera; Pkg XLS
ES/LS – 140-watt CD/MP3 player with 6 speakers, digital signal processor and speed compensated volume and equalization control
6CD/MP3 in dash changer (NA with Navigation package); Std XLS, Pkg ES 4WD/LS
MP3/Auxilary stereo input jack
Steering wheel mounted cruise control, audio remote control switches
XLS – Sportronic® steering wheel paddle shifters
Steering wheel Bluetooth™ cell phone "ready" switch (requires dealer installation of microphone and Bluetooth™ cellular interface module and harness); Std on ES/LS
Hands-free Bluetooth™ cellular phone interface system with voice recognition microphone; Std on XLS, Acc on ES/LS
ES – Keyless entry with panic alarm
LS/XLS – FAST keyless entry and starting system with panic alarm
Ambient lighting monitor
