Citroen Numero 9 Concept

A new take on the shooting brake body style, Citroën Numéro 9 Concept has elegant, thoroughbred looks enhanced with further radical design elements. Solid, sculpted proportions and subtle lines convey a distinctive and sophisticated character. The sophistication is allied with a high-quality finish for a truly original driving sensation and features that are practical and versatile in everyday use.

The concept is designed with plug-in full-hybrid technology; an ultra-efficient system that boasts remarkable levels of performance - 166mpg fuel economy, 50km range in ZEV mode, 295hp, a 'boost' function and 39g/km of CO2.

Designed in Paris, Citroën Numéro 9 opens a new chapter in the styling of the DS line.

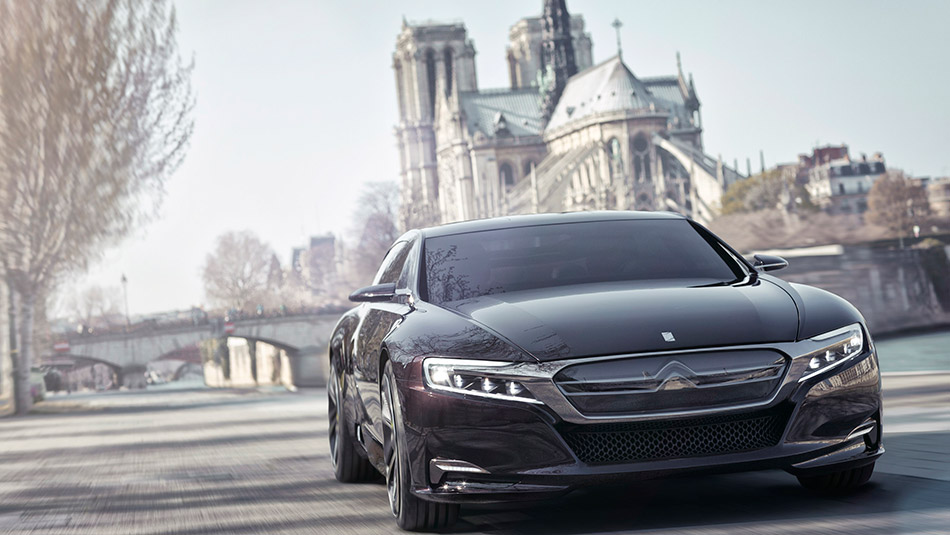

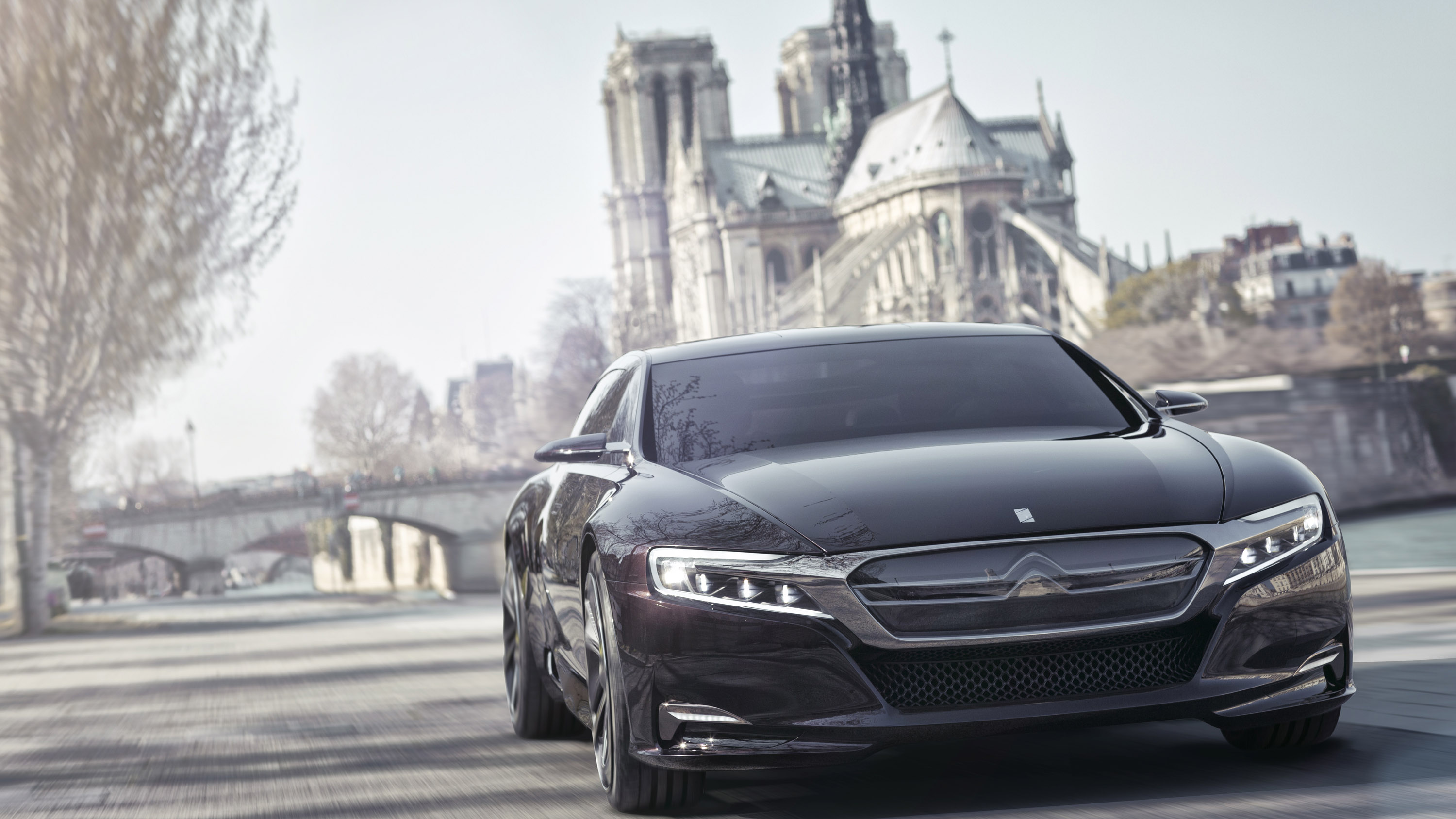

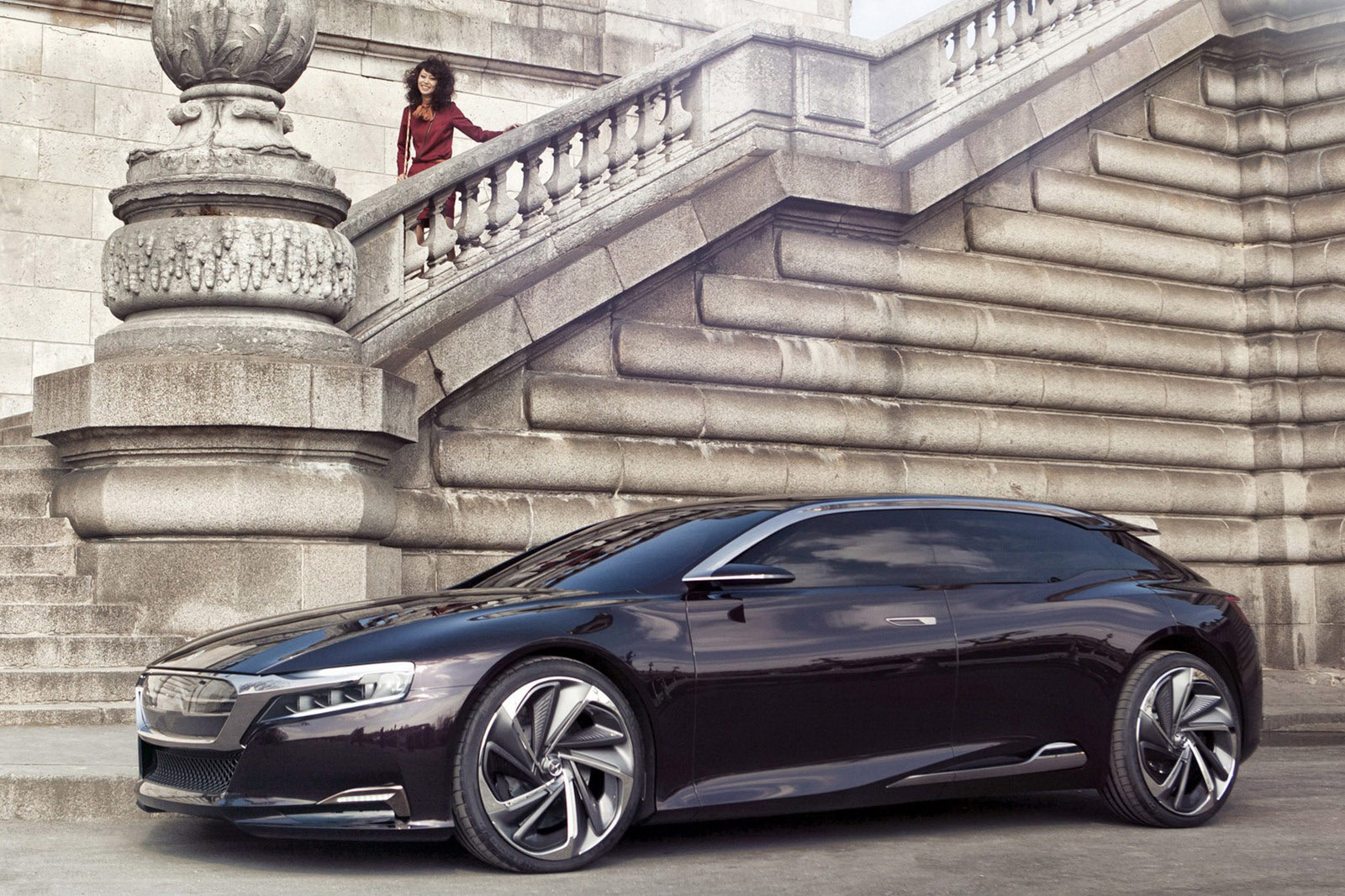

2012 Citroen Numero 9 Concept Front Angle

A FRESH TAKE ON FRENCH-STYLE LUXURY

Following on from DS3, DS4 and DS5, Citroën Numéro 9 Concept takes a fresh look at the DS line with a new take on the prestigious shooting brake design.

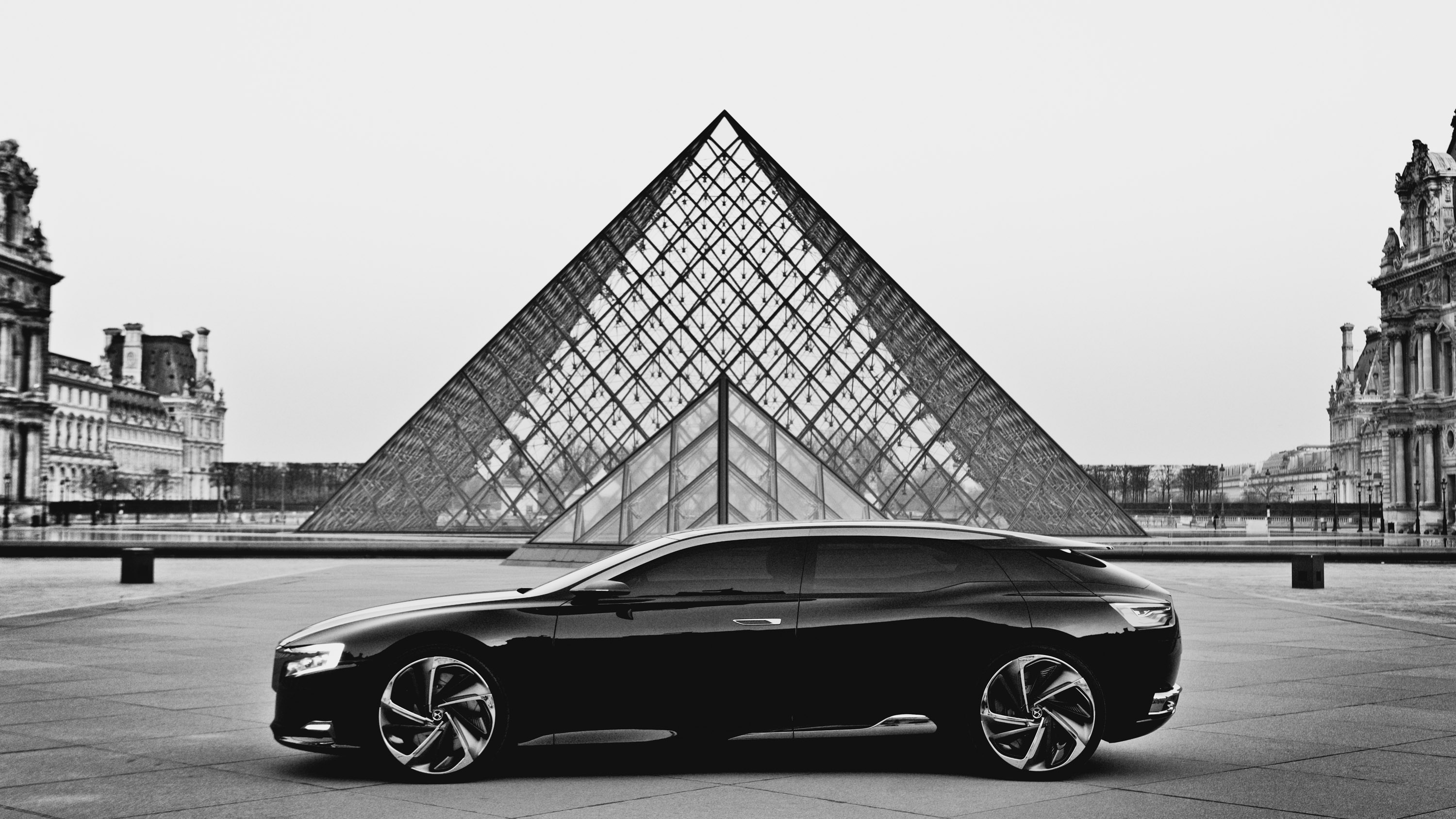

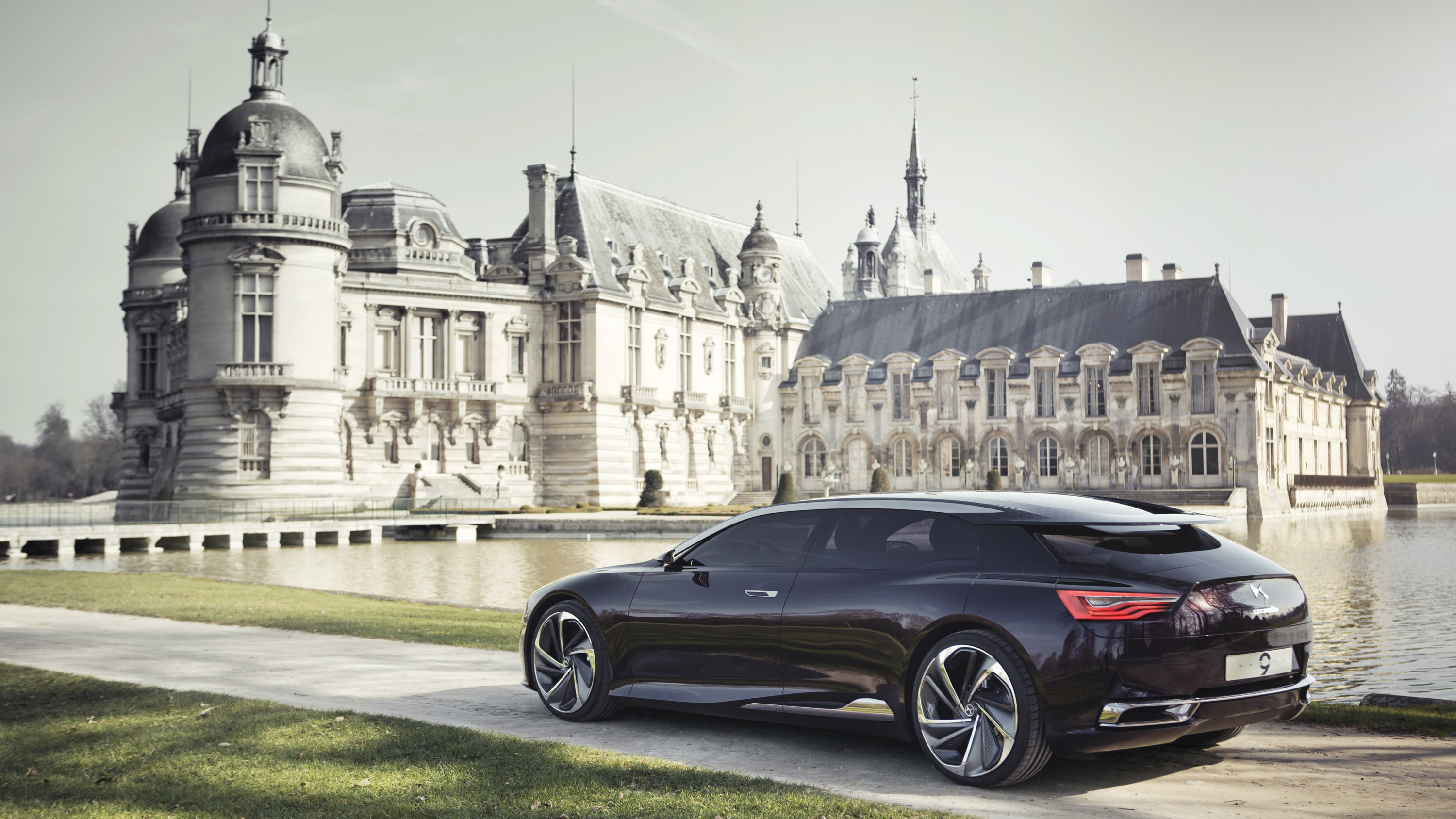

Subtly combining the proportions of a coupé with those of an estate, Citroën Numéro 9 hints at exceptional driving sensations, with its taut lines, long bonnet and ultra-low stance (1.27m tall) on 21-inch wheels. It also promises unique onboard comfort with its generous proportions (4.93m long and 1.94m wide, with a 3m wheelbase) providing plenty of room for rear occupants. The three glass areas in the roof also create a welcoming, friendly cabin ambience.

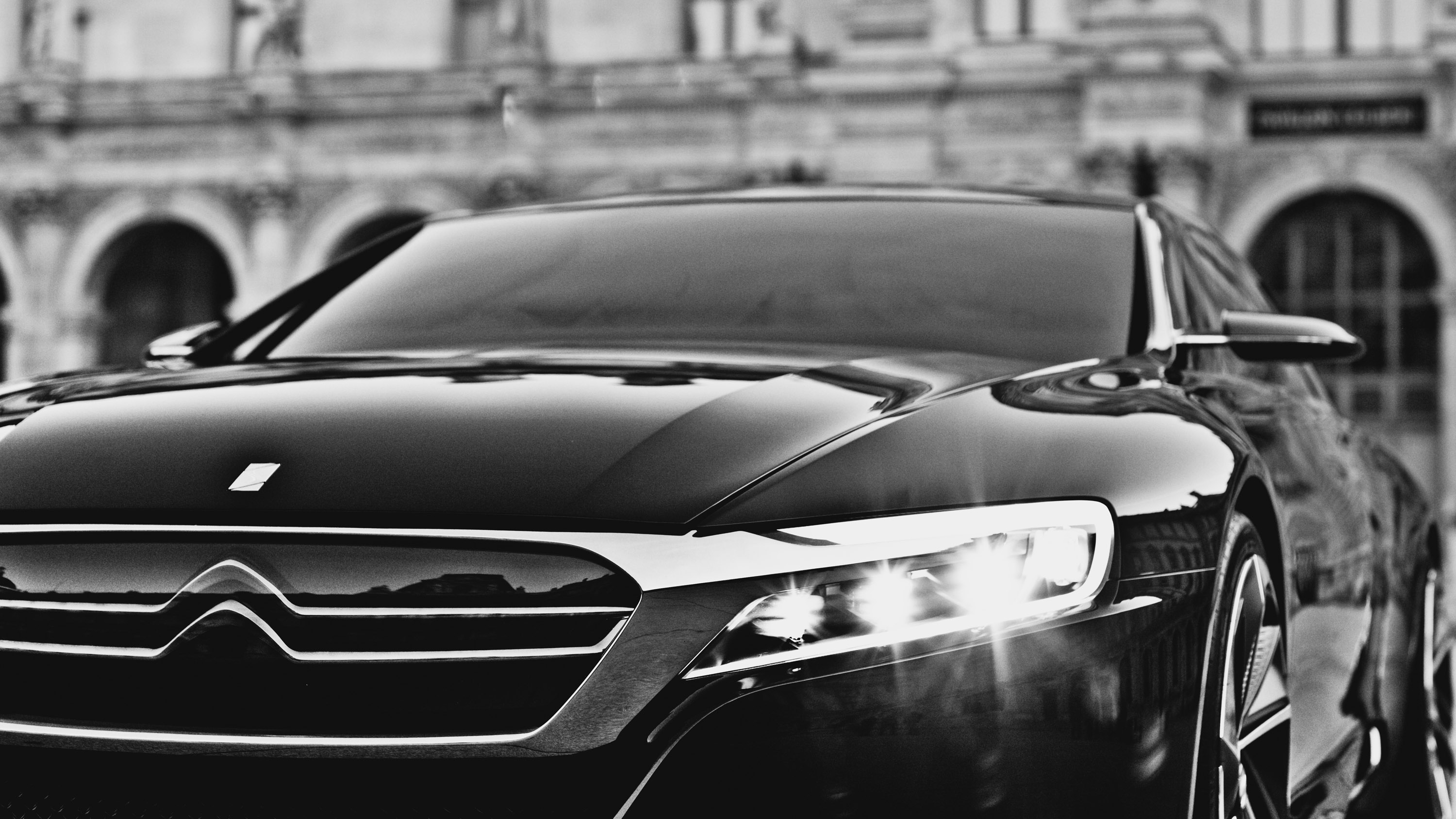

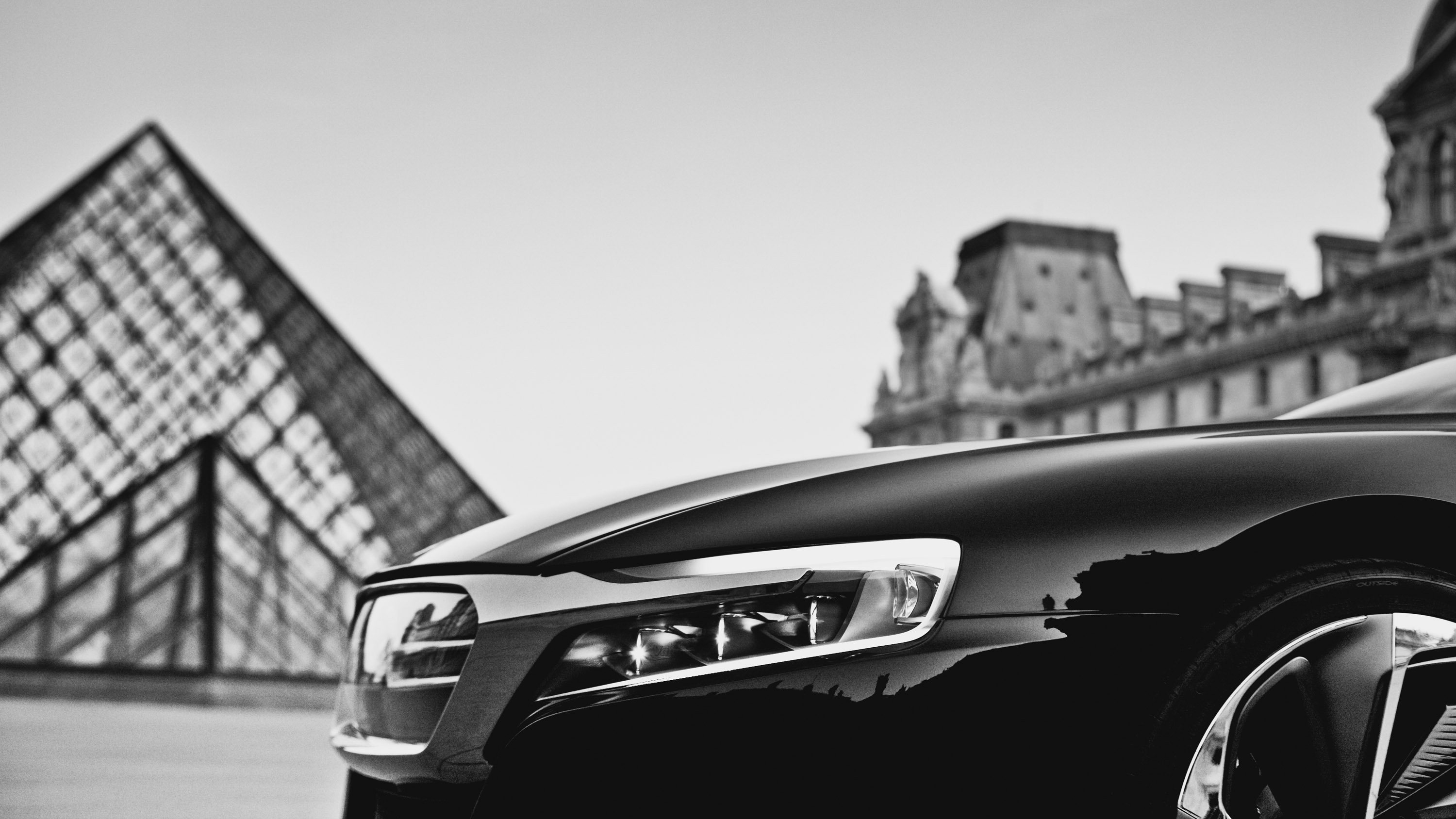

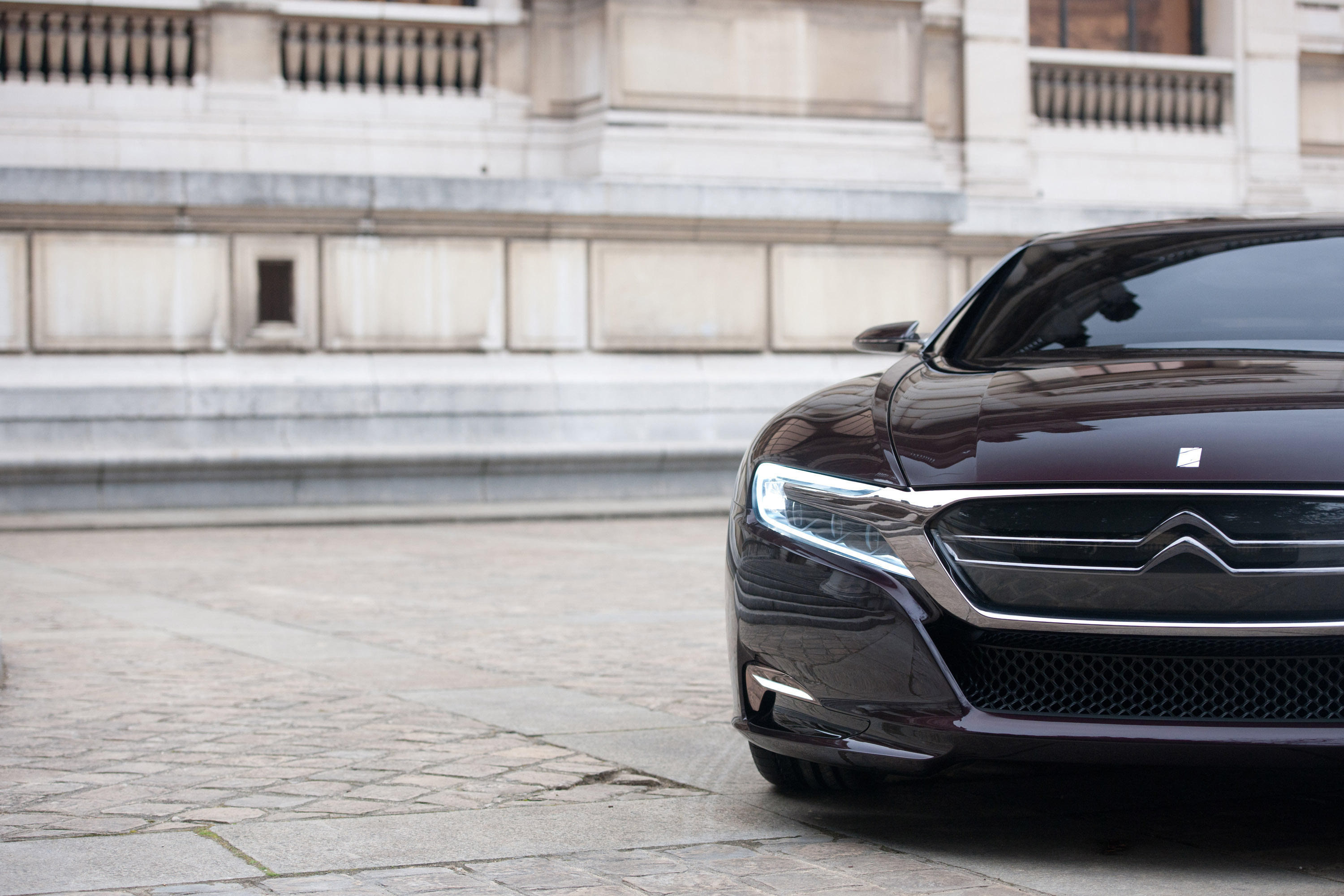

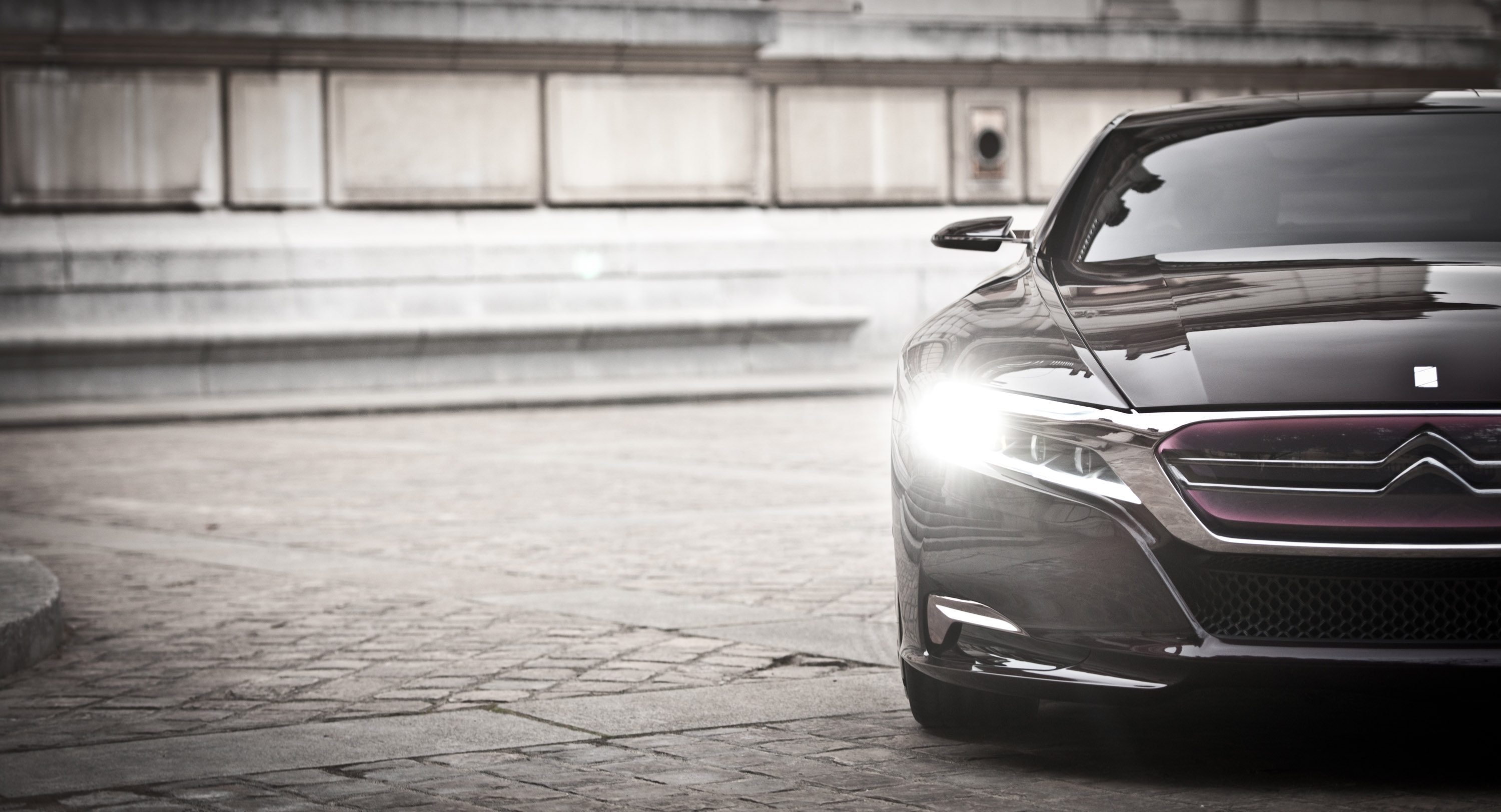

Citroën Numéro 9 Concept evolves the design cues of the current DS line, introducing the new front-end identity of future models, along with an original light signature. The grille is sculpted in 3 dimensions and flows into the full-LED headlights, which end in daytime-running lights. Condensing the distinctive forms of the DS line, the concept also features a floating roof, underlined by chrome trim with discreet DS markings, and glazed side surfaces flowing into the rear window.

A sophisticated use of body colours and materials includes deep black bodywork with subtle hints of violet. The finish, named 'Whisper', is a perfect match for the warmer shade of the 'Californian' chrome finish.

The 'Créative Technologie' used by Citroën Numéro 9 combines comfort, safety and respect for the environment, while also delivering enjoyable driving sensations for all occupants.

Every detail was designed to contribute to Citroën Numéro 9's aerodynamic efficiency (CdA = 0.61) including:

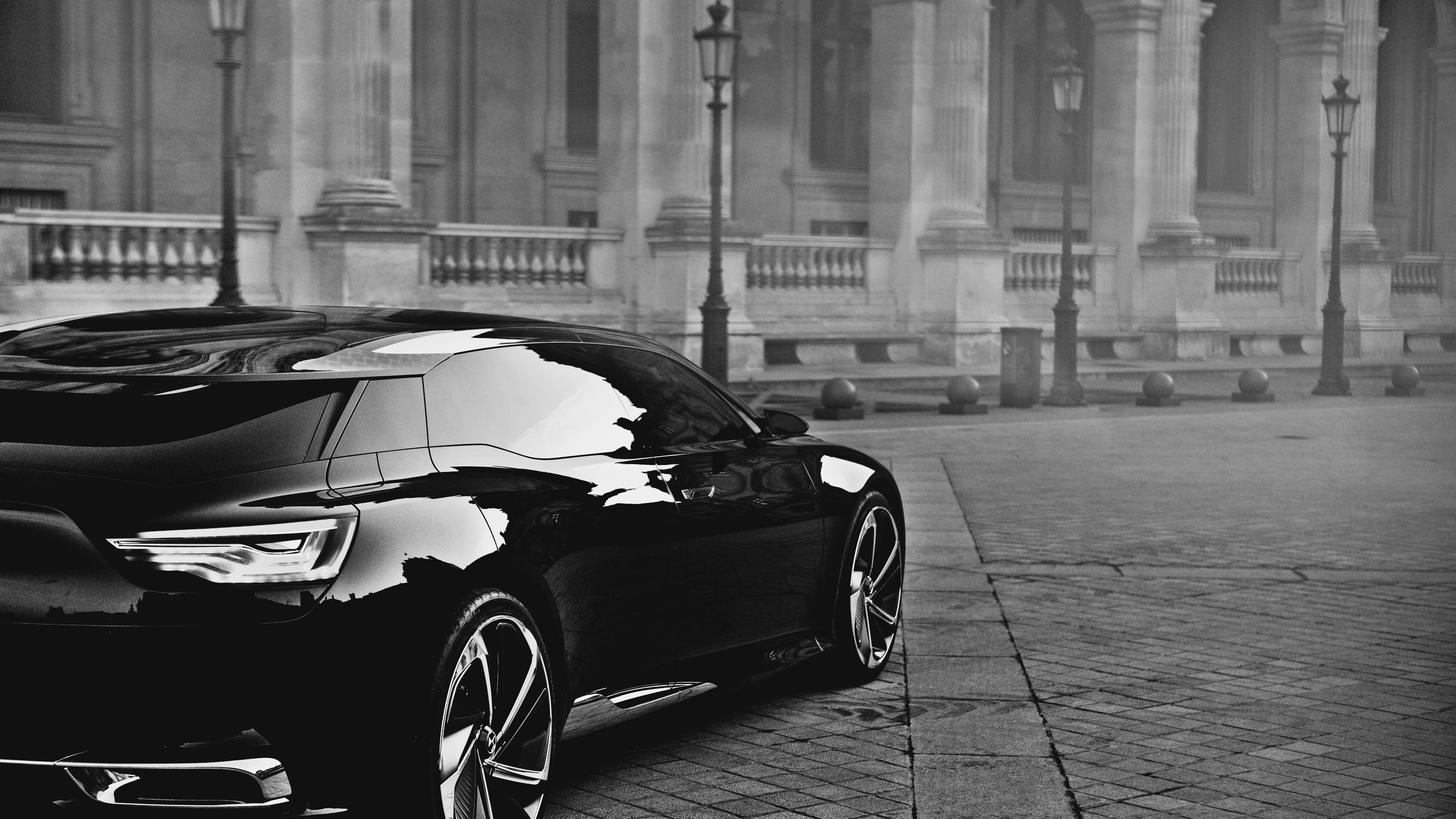

  • a rear spoiler, which reinforces the fastback effect
  • windscreen pillars that contribute to efficient air flow around the car
  • 'Turbine' wheels with integrated fins to increase the air flow around the wheel arches, reducing both turbulence and fuel consumption
  • With its plug-in full-hybrid technology, concept car Numéro 9 is also a perfect fit with Citroën's environmental commitments.

The advanced drivetrain combines a conventional petrol or diesel engine (depending on the market) with an electric motor on the rear axle that develops 70hp and torque of 200Nm. The electric motor is powered by lithium-ion batteries that can be recharged in just 3½ hours from a normal domestic socket. The model on display at the Beijing Motor Show is fitted with a 1.6 THP petrol engine developing 225hp (165kW) and 275Nm of torque.

With its plug-in hybrid technology, Citroën Numéro 9 Concept respects the environment. It has a range of 50km (around 31miles) in all-electric ZEV (Zero Emission Vehicle) mode and, on roads demanding successive acceleration and deceleration, the hybrid drivetrain limits consumption by using both sources of energy. On the motorway, the combustion engine takes over to deliver real performance.

Numéro 9 features new-generation micro-hybrid technology designed to switch the combustion engine to stand-by whenever it is not required.

When the driver requires speed and torque, a 'boost' function combines the power of the combustion engine and electric motor to enable high levels of performance (up to 295hp). Numéro 9 takes just 5.4 seconds to go from 0 to 62mph and 25.3 seconds to travel 1,000m from a standing start.

When grip is lacking, the car switches to four-wheel drive mode with the electric motor driving the rear wheels and the combustion engine powering the front wheels. In particularly difficult driving conditions, such as driving up a sloping, snow-covered road, the driver can manually select 4WD mode. The four-wheel drive system and hydraulic active suspension then deliver increased traction, making full use of the potential of Citroën Numéro 9 in complete safety.

Looking beyond on-road performance and environmental benefits, the full-hybrid plug-in technology offers a third advantage: the cabin can be prepared before the car is used. For example, it can be pre-heated to ensure the comfort of all the occupants as soon as they climb onboard.

TECHNICAL SPECIFICATIONS

DIMENSIONS

  • Length: 4.93 m
  • Width: 1.94 m
  • Height: 1.27 m
  • Wheelbase: 3.00 m

WEIGHT

  • Total laden weight: 1,500kg
  • PLUG-IN HYBRID DRIVETRAIN
  • 1.6 THP petrol engine developing 225hp (165kW) / torque of 275Nm
  • Electric motor on rear axle: power of 70hp / torque of 200Nm
  • ZEV mode: range of 50km

PERFORMANCE AND CONSUMPTION

  • 0-1.000m: 25.3 seconds
  • 0-62 mph (0-100 km/h): 5.4 s
  • Top speed: 152 mph (244km/h)
  • Fuel Consumption: 166 mpg (1.7 l/100km)
  • CO2 emissions: 39 g/km

AERODYNAMICS

  • CdA: 0.61

Source: Citroen
